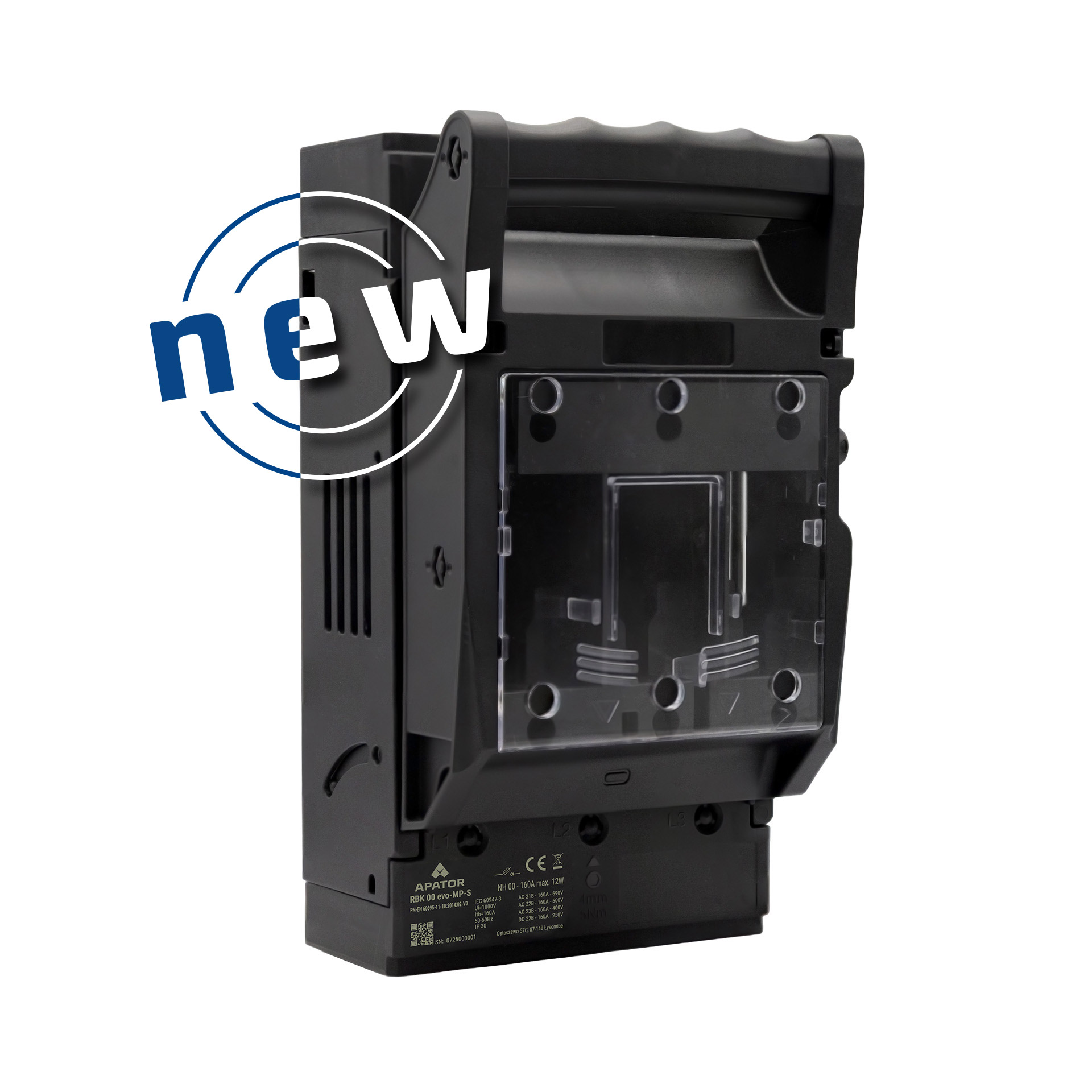

RBK 00 evo - profil prawy new

RBK 00 evo-BS

Fuse switch disconnector

  • Contacts and current-carrying tracks made of electrical-grade copper

  • Electroplated silver-plated contacts ensuring low power loss

  • A flame-retardant, self-extinguishing plastic with a V0 flammability rating

Ask about this product

We strive to respond to every message within 24 hours (on business days).

Find out what the RBK 00 evo-BS switch disconnector has to offer

RBK 00 evo-BS fuse isolating switches are designed for energy distribution and to protect electrical equipment against the effects of short circuits and overloads by means of industrial fuse links. They are designed in accordance with the applicable standards PN-EN IEC 60947-1 and PN-EN IEC 60947-3. They are intended for use in industrial LV switchgear and cable termination boxes.

A switch disconnector designed for panel-mounted installation

Operates at ambient temperatures ranging from -25˚C to +55˚C

Cables can be connected using a screw terminal or a V-clamp

Inspection holes for checking the condition of the fuse

The ability to check the condition of the fuse links

Versions



RBK 00 evo – Installation on a 60 mm busbar bridge, IP20 – busbar thickness 5 mm or 10 mm
  • RBK 00 evo-BS-S switch disconnector for connecting cables with stripped ends – bridge terminal
  • RBK 00 evo-BS-M switch disconnector for cables with crimped terminals – screw terminal
  • RBK 00 evo-BS-V switch disconnector for sector cables with stripped ends – sector terminal
  • RBK 00 evo-BS-R switch disconnector for connecting cables with stripped ends * frame terminal
  • RBK 00 evo-BS-S-X switch disconnector for connecting cables with stripped ends – bridge terminal
  • RBK 00 evo-BS-M-X switch disconnector for cables with crimped cable ends – screw terminal
  • RBK 00 evo-BS-V-X switch disconnector for sector cables with stripped ends – sector terminal

  • RBK 00 evo-BS-R-X switch disconnector for connecting cables with stripped ends * frame terminal



[-X] – electronic monitoring of fuse links burnout
* – the use of ferrule terminals is recommended for multi-strand cables

Applications of the RBK 00 evo-BS isolating switch

Low voltage switchgears

The horizontal fuse switch disconnector is a solution designed to optimise space in LV switchgear. Thanks to its compact design, it facilitates the layout of switchgear whilst ensuring reliable circuit protection. A well-designed connection system allows cables to be organised and routed safely, which speeds up installation and makes future inspections easier.

Distribution and cable connectors

The horizontal fuse switch disconnector ensures effective circuit isolation, thereby enhancing staff safety during operational work. Furthermore, the device minimises the risk of phase-to-phase short circuits, and its design guarantees the stability of the network parameters.

Capacitor banks

The cassette-type switch disconnector in capacitor banks ensures a high level of safety and reliable disconnection of the circuit during operation and maintenance. Its compact design facilitates integration and neat cable routing, which speeds up installation and inspections. High resistance to frequent switching cycles, thermal loads and contamination reduces the number of service interventions.
